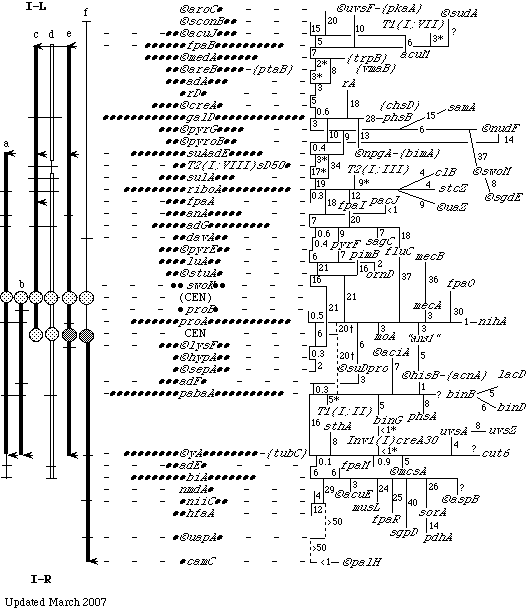

Chromosome I Map
The top of the diagram represents the conventional left of the chromosome, and the bottom, the right. See below and I Linkage data
for explanation.
Mitotic map
The vertical lines on the left of the map show mitotic mapping. Lines crossing a bold
vertical line indicate markers ordered relative to each other and the centromere by this
method. Selective markers are arrowed. Thinner vertical lines indicate markers
mitotically mapped distal to the selective markers, which are therefore not ordered
relative to each other by this method. The two filled circles indicate evidence for
diffuse centromeric function, the more darkly shaded circle representing the
centromere most commonly detected when using the proA marker on fully
supplemented medium. Open boxes show markers located by heterozygosity in
translocation disomics to chromosome segments separated by the translocation
indicated. See map I data for references.
Meiotic map
Vertical lines indicate links whose orientation has been determined relative
to neighbouring genes. For markers connected by
horizontal or diagonal lines, the distance is recorded, but orientation is not.
The main column of markers represents a backbone of loci which, except at telomeres
and in cases of well-established close linkage, have been mapped to at least one
adjacent locus on each side. It is usually, but not always, implied that three-point
crosses have been employed in such mapping. The number of bullets before and after
each locus denotes the number of linkages noted from the literature, to markers
respectively left and right of the locus.
Markers on the right hand side of the diagram are those less precisely mapped. In
many cases their positions have been related to markers in only one direction; in these
cases, or where one distance is markedly shorter than the other, only the distance to
the nearest marker is shown.
Markers in curly brackets {} are on the same, or adjacent, cosmid as an adjacent
marker.
See Linkage data for genes located to I but not mapped further.
© or {}: Cloned gene
* Recombination probably reduced by heterozygosity for a translocation or inversion.
t Map distance to centromere obtained by tetrad analysis.
